oaCapture 0.1.0 User Manual

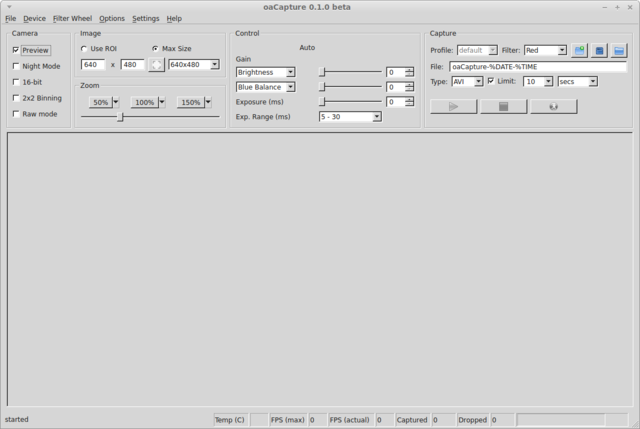

After starting oaCapture you should see a screen like this:

00-start-screen

The main controls are at the top and there’s a status bar at the bottom with a scrolling area for previewing the image from the camera in between.

Program control and configuration

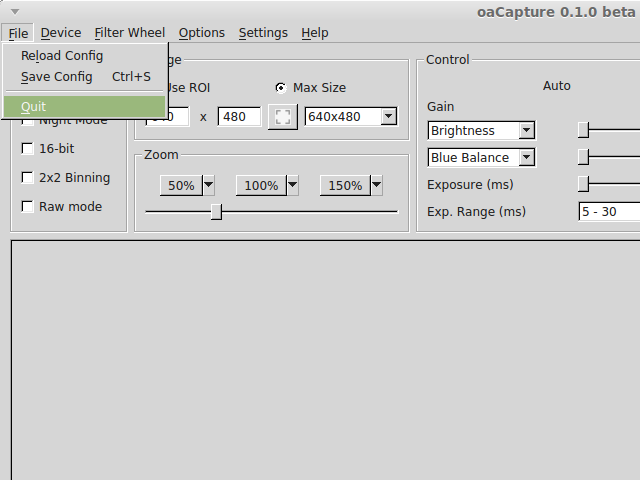

Menus for controlling and configuring the application itself appear at the top.  First is the “File” menu:

01-toolbar-file

At the moment the “Save” and “Reload” configuration options do nothing, so “Quit” is the only useful choice here.  The current configuration is saved when the program exits unless configured otherwise.

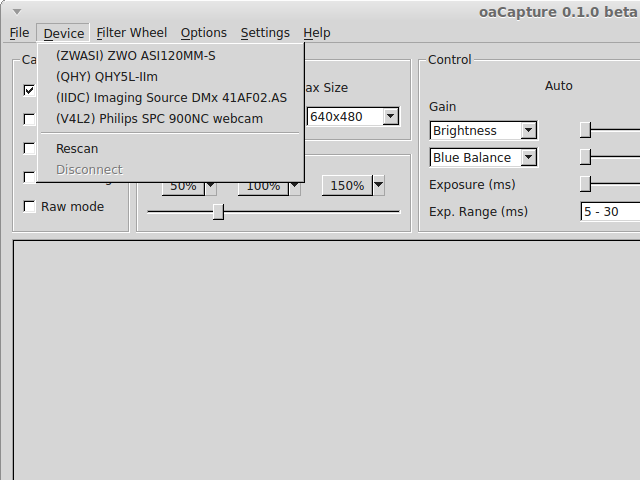

Next is the “Devices” menu:

02-toolbar-device

This shows any currently recognised cameras and the interface used to connect to them.  “Disconnect” disconnects the camera and “Rescan” rescans to update the camera choices after cameras have been added or removed, so it is possible to connect a camera and use it after the application has started.

In this case a ZWO ASI120MM-S has been found via the ZWO ASI SDK, a QHY5L-II mono, a FireWire TIS DMK41 using the IIDC interface and a Philips SPC900 using the Linux V4L2 kernel interface.

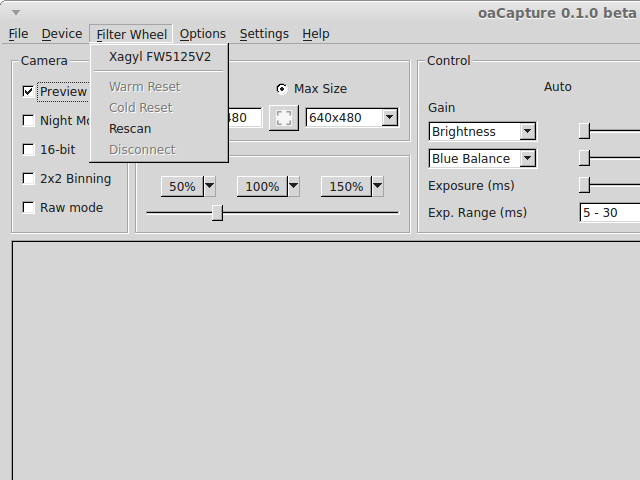

The next menu is for filter wheels. This works similarly to the previous camera menu:

03-toolbar-filterwheel

Here there’s a Xagyl five-slot 1.25″ wheel attached.

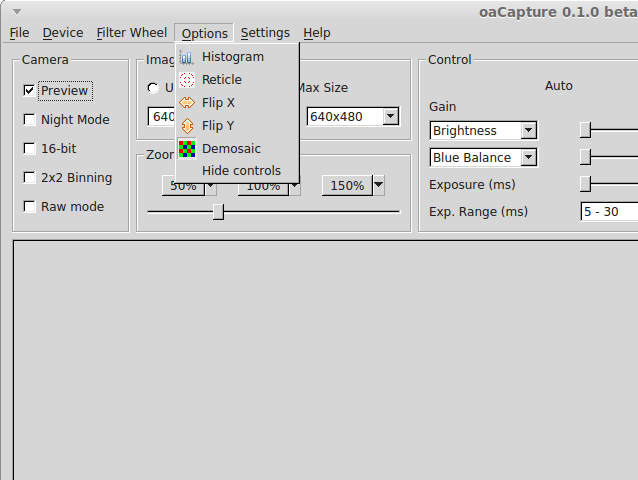

The “Options” menu enables various components of the application:

04-toolbar-options

“Histogram” opens a new window to display a histogram for the captured data.

“Reticle” displays a reticle over the captured image in the preview window. A number of different reticle types are available, chosen from the “Settings” dialog (see later). Once displayed the centre of the reticle can be dragged around the screen by “grabbing” the centre with the mouse, or rotated using a mouse scroll wheel when the pointer is in the preview area:

04-toolbar-options-reticle

“Flip X” and “Flip Y” flip the image about the vertical and horizontal axes respectively.  If the camera supports this in hardware then the flipping will be done that way, otherwise in software.  Flipping raw colour images may result in unexpected behaviour as the original colour mask may no longer be suitable.

“Demosiac” enables conversion of raw colour data from monochrome to full colour.  This can be just for the preview image or for both the preview image and the frame written to an output file.

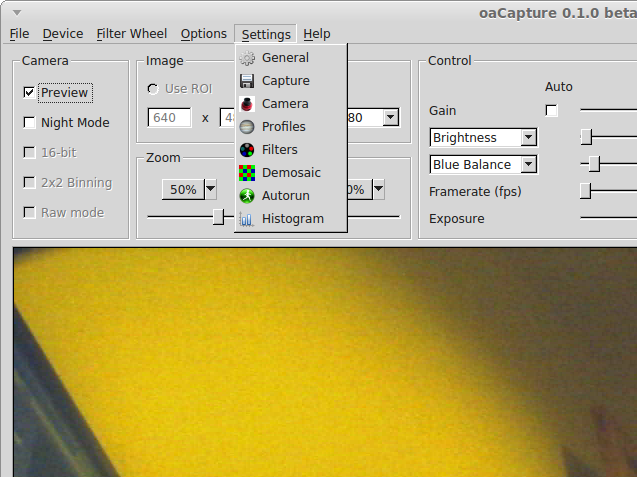

The “Settings” menu control configuration of the application behaviour:

05-toolbar-settings

All these options open the same configuration window at a different tab.

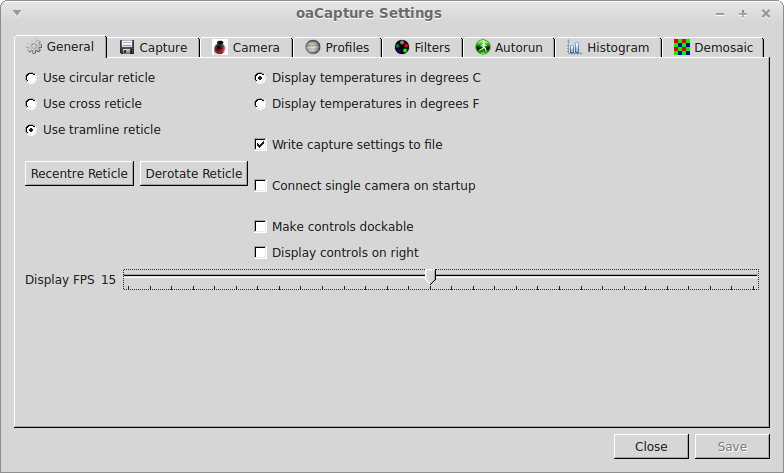

General

06-settings-general

Hopefully the reticle and temperature settings should be mostly self-explanatory, but the “Recentre reticle” and “Derotate reticle” buttons restore the original orientation of the reticle should you need to.

“Write capture settings to file” enables writing a file of the same name as the file of captured data, but with a “.txt” extension.  This contains the camera settings used when the data was captured.

“Connect single camera on start-up” allows oacapture to automatically connect to a camera when the application starts, if it only finds one camera present.

“Make controls dockable” allows the control panels in the main window to be detached from the application and moved elsewhere on the screen. This may help with small displays where there’s not much space left outside the camera image itself.

Similarly “Display controls on right” moves all the control panels from above the image preview to the right of it, giving a layout like this:

06-settings-general-onright

Both of these options require the application to be restarted.

“Display FPS” allows the frame rate to be set for the preview window.

Capture

07-setttings-capture

The single “reset counter” button here resets the counter used for saved TIFF images.

Camera

08-settings-camera
This section allows access to (nearly) all of the available camera controls in a single place. There are a few that aren’t supported such as switching between colour and raw mode. Where this is the case a list of the unsupported controls should appear at the bottom of the window. The example above is from an SPC900.

Profiles

09-settings-profiles

Adding a profile saves the current camera settings for later use.  A meaningful name for the saved settings can be entered in the left-hand panel.  These are then available to chose from the “Profile” menu in the capture settings panel.

There’s a list of targets that might be associated with any given profile in the drop-down. This isn’t used as yet, but will be used in the future to calculate ephemeris data and provide other useful information from that.

Filters

10-settings-filters-1

Sets the names of the filters that can be selected in the “Filter” menu in the capture panel.

When a filter wheel is connected further options will be shown to select the filter in each slot in the wheel:

11-settings-filters-2

Autorun

12-settings-autorun

Autorun enables a sequence of capture runs to be completed one after the other.  The number of runs and the delay between them can be configured, then click “Enable Autorun” to set oaCapture start next time the capture button is clicked in the capture pane.

A sequence of filters may be configured for each autorun pass. This doesn’t require an electronic filter wheel to be connected to work. In the case where there is no wheel connected, the checkbox pops up a prompt window to allow you to move to the next filter before continuing with the capture.

Histogram

13-settings-histogram

When the image is RGB, the histogram can be displayed either as one histogram with the three colour graphs laid on top of each other, or as three separate graphs.

Normally the histogram will stay on top of all other windows, but the second option here allows that behaviour to be turned off.

Demosaic

14-settings-demosaic

The first two options here set the handling of raw colour data when the “Demosiac” selection is made from the “Options” menu.  Either just the preview window can be converted to RGB, in which case data written to files will remain in raw form, or both can be converted to RGB, or just the data written out.  The last choice is probably not very useful.

The second group of options select the CFA pattern to use.  If you’re not sure it may be helpful to set up during the day and change options until the colours look correct.  It is usually fairly obvious when they aren’t.  Note that at one time the software TIS provided with their cameras cropped off the first line of the image so the pattern they document may not be the correct one to use here.  GBRG is the correct pattern for the TIS cameras that I have tested.

The final set of options used allow the algorithm for the raw to RGB conversion to be selected.  “Nearest neighbour” is fast but low quality.  Bilinear is slightly slower, but does a far better job and should be preferred.  Smooth Hue and VNG (Variable Number of Gradients) may well be too computationally intensive for many machines.

Controlling the camera and capture

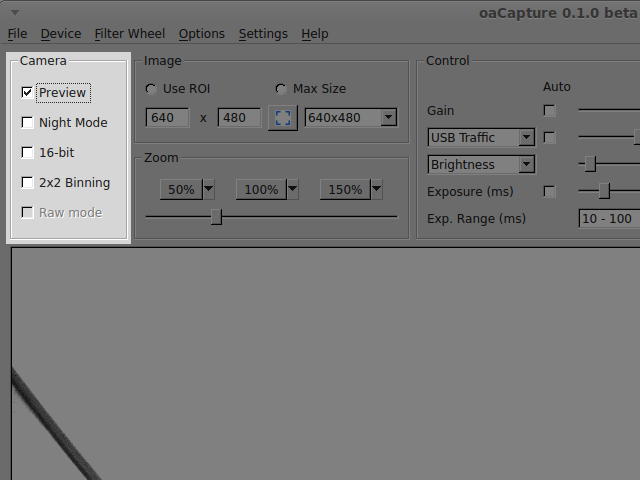

Camera/Display Settings

15-camera-controls
The Camera pane allows the preview to be turned on and off (this should not affect capture to files), to set the application to a dark red colour for nighttime use and for enabling 16-bit mode, 2×2 binning and raw mode for cameras supporting those features.

16-bit mode is currently only enabled for mono cameras, as is 2×2 binning.  Raw mode is only available for colour cameras supporting both RGB and raw data transfers.

Image Size

16-image-controls

The image pane allows the size of the captured image to be set.  Where a range of resolutions is offered by a camera driver however, these appear in the drop-down beneath the “Max Size” option and can be selected that way.  The ROI selection supports selection of arbitrary size regions if the camera supports it.  To select an ROI click on the ROI selector and then enter the size required.  oaCapture may adjust the size if the camera enforces other constraints (eg. the ASI120 cameras require the ROI to be a multiple of 1024 pixels).  To apply the new resolution click on the “square” button.

“Max Size” chooses the largest resolution supported by the camera.

Preview Zoom Size

17-zoom-controls

The Zoom panel allows the size of the preview image to be changed.  This does not affect captured data written to a file, just the on-screen view.  The three buttons allow direct selection of a fixed scaling of image whereas the slider beneath them allows arbitrary scaling from 25% to 300%.  The actual values for the three buttons can be changed by selecting them from a menu by clicking on the arrow at the right of each button:

18-zoom-controls-2

Camera Exposure Controls

The Control menu enables setting of gain, gamma, brightness, frames per second and exposure time where the camera driver offers those options.  The values can be set by moving the sliders, by clicking on the up and down arrows in the boxes at the ends of the sliders or by directly typing values into the boxes.

19-control-controls

The gain, exposure time and frame rate sliders are always present if the camera supports those controls.  The two other sliders are user-selectable from the entire range supported by the camera.  Just pick the ones required from the drop-down whenever they’re needed:

20-control-controls-2

Some cameras allow a specific exposure time to be set which oaCapture will show as milliseconds.  Others use an arbitrary scale.

Where the range of exposure times is large, a drop-down menu is shown with varying ranges available for the current range of the exposure time slider:

21-control-controls-3

Capture Controls

22-capture-controls

This pane controls functions relating to the capture process.

The “Profile” menu allows selection of preset values for the camera settings from those previously configured in the settings configuration.  The button to the right of the menu restores the settings associated with the profile currently in use in the event that they have been changed.

The “Filter” menu selects the name of the filter in use. If no filter wheel is connected this allows the full range of filters to be chosen. When a wheel is connected, only those filters configured in filter slot positions are offered.

“Filename” sets a template for the names of the files saved by the capture process.  Substitutions are made in this name from the following set:

%D or %DATE the date, in the form YYYYMMDD
%T or %TIME the time of day, in the form HHMMSS
%U both of the above: YYYYMMDD-HHMMSS
%P or %PROFILE the profile name
%F or %FILTER the filter name
%Y or %YEAR the current year, YYYY
%M or %MONTH the current month, MM
%d or %DAY the day of the month, DD
%h or %HOUR the current hour, HH
%m or %MINUTE the current minute, MM
%s or %SECOND the current second, SS
%E or %EPOCH seconds since the epoch (1/1/1970 00:00:00)
%I or %INDEX the number of frames captured since the application was started

The three buttons to the right of the Filename box allow the current directory for saving captures to be changed, the last capture to be deleted and viewing of the contents of the capture directory.

The “type” menu selects the file type for saving data.  Only AVI, SER (v3) and TIFF are supported in v0.0.4 where the capture format allows them.  TIFF is not available for raw capture for instance because it cannot store raw frames.  When using TIFF separate files are created for each of the captured frames.  To prevent the files all having the same name the “%INDEX” substitution can be used in the filename.

The Limit checkbox, when checked, allows setting a limit on the number of frames in or the length in seconds of each capture file.  Checking the box opens up options for selecting the number and type (see the image below).

The first two of the final row of buttons start and stop the capture run.  The final button is used when “autorun” is enabled:

23-capture-controls-2

Once an autorun is complete (progress is displayed alongside this last button), clicking this button resets the autorun values to those chosen in the “Settings” window.  This allows another autorun to be started without having to open the settings window again.

The limit box also now has a drop-down for commonly-used values:

24-capture-controls-3

Status Bar

25-status-bar

Finally, the status bar from left to right contains:

  • An area for status messages
  • The current camera temperature, should it be available
  • The theoretical maximum number of frames per second based on the frame rate or FPS setting
  • The actual number of frames per second
  • A count of the number of frames captured (and dropped, where available) in this run, and following that
  • A progress meter
